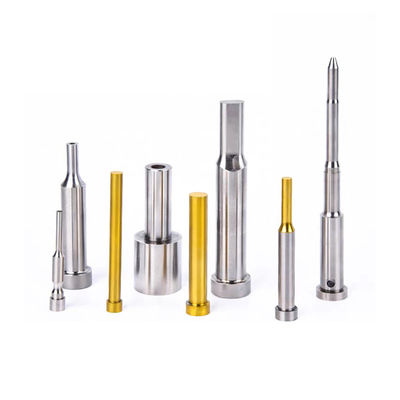

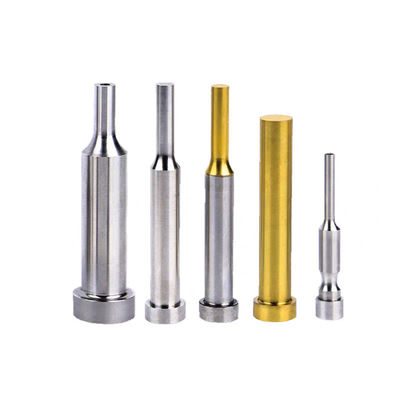

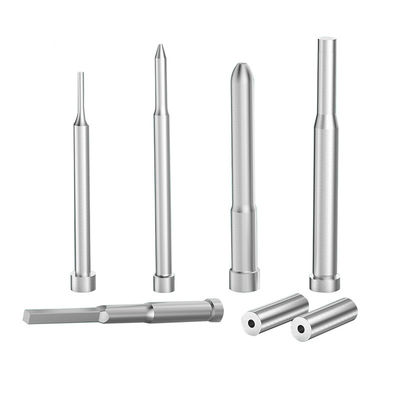

Polished Punch Molds Carbide Dies Wear Parts For New Energy Vehicles
Carbide Dies and Wear Parts designed specifically for battery, rotor and stator components in New Energy Vehicles. These precision components are essential for efficient production of electric vehicle motors.
Application Field
With the consistent growth in electrically powered vehicles, motors must be produced with extreme efficiency. Cemented carbide is currently the optimal material for the most economical production of rotor and stator sheets, offering vibration-dynamic and wear-related advantages compared to steel.
Product Details
- Surface Roughness: RZ~~0.2um / F1.0mm/min
- Accuracy: ±0.001mm
- Customization: Fully customized solutions only. No standard stock available. Please provide CAD/3D drawings with your inquiry.
- Suitable Materials: Tungsten carbide and ceramic (see material properties below)
| Material |
Material Properties |
| Carbide |
Cemented carbide is a powder metallurgical composite consisting of hard material phases (e.g. tungsten carbide) and binding material (e.g. cobalt). Characterized by extreme hardness, high wear resistance and thermal stability. More difficult to machine than die steel but offers significantly longer service life. |
| Ceramic |
Excellent high temperature resistance (180°C to 1200°C+). Resistant to chemical attack in acid and alkaline solutions. Common types include alumina, zirconia, silicon carbide, and silicon nitride ceramics. |
Involve Machining Technology
Cylindrical grinding, internal circular grinding, optical profile grinding, flat grinding, thread machining, middle speed wire cutting, low speed wire cutting, mirror discharge machining and more.
Why Choose Us
- Advanced Technology: Complex shapes and structures formed with precision
- Efficient Processing: Short production cycles and rapid delivery
- Product Quality: Consistent quality with accuracy up to ±0.003mm
- Confidentiality: Triple protection measures, NDA available
- Production Capacity: Multiple production lines with advanced equipment
- Cost-Effective: Competitive pricing through optimal design and material selection
Kinyet specializes in tungsten material R&D, continuously investing in new technology and high-end equipment to deliver high-precision, long-life tooling solutions at competitive prices. Now merged with Drow, we offer even greater capabilities for innovative product development.
Quality Criteria
- Wear Resistance
- Precision
- Corrosion Resistance
- Impact Strength
- Toughness
- Modulus of Elasticity/Rigidity
- Transverse Rupture Strength
FAQ
Q1: Do you produce special punch mould or punch die components?
A: Yes, we specialize in customized mold fabrication, translating complex punch die concepts into reality for various demanding applications and materials.
Q2: Do you accept low volume for sample order? What's your MOQ for customization?
A: Yes, sample orders with MOQ of one piece are accepted. Lead time is 10-15 days (negotiable for special requirements). Please provide CAD/3D drawings with your inquiry.
Q3: Is confidentiality possible for cooperation?
A: Absolutely. All information including company details, drawings, and PO information is kept confidential. We can sign an NDA upon request.
Q4: What are your payment terms?
A: 30% T/T deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
Q5: What products can you buy from us?
A: Carbide inserts, end mills, drills, boring tools, cutting tools, and customized carbide precision molds.
